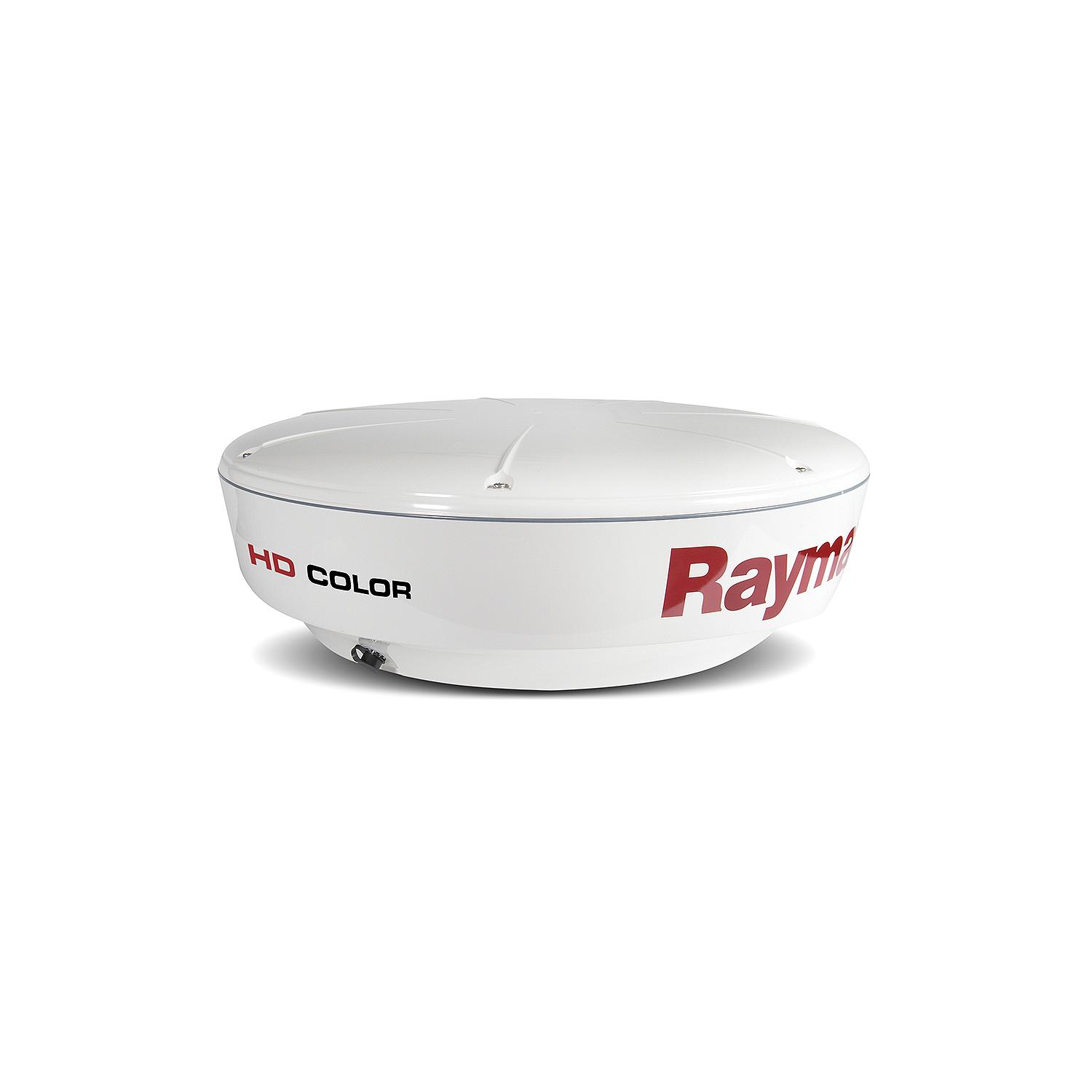

Raymarine T70168 18" HD Color Radome Scanner w/10m Cable

Raymarine T70168 18″ HD Color Radome Scanner w/10m Cable

$2,242.95

Raymarine T70168 18″ HD Color Radome Scanner w/10m Cable

SKU: 152-T70168 Categories: , , , Brand:

Description

Raymarine T70168 18″ HD Color Radome Scanner w/10m Cable Compatible with the following Multifunction Displays: aSeries; c Series; e Series; NEW eS Series; gS Series; C Series Widescreen; E Series Widescreen; G Series.

Description: 4kW 18″ w/10m Raynet Cable
Size: 20.5″ x 9.7″
Networking: SeaTalkHS
Peak Power Output (kW): 4.0 kW (nominal)
Antenna Type: Patch Array
Beam Width (Nominal): 4.9 horizontal, 25 vertical
Polarization: Horizontal
Rotation Rate: Range less than 3 miles 48 RPM (radar switches to 48 RPM automatically, unless 24 RPM is selected) | Range greater than 3 miles – 24 RPM (nominal)
Power Consumption: 60 W (25 W Standby)
Maximum Range Scale: 48 nm
IF Frequency: 70 MHz (nominal)
Transmitting Frequency: 9405 +/ 25 MHz
Transmitter: Solid-state modulator driving Magnetron
Standby Mode: Magnetron heater and control left on, all other services off
Duplexer: Circulator
CE Approval: Conforms to 1999/5/EC
FCC Approval: Conforms to 47CFR Part 2 and Part 80

Additional information

Weight 63 lbs
Dimensions 25 × 25 × 13 in
