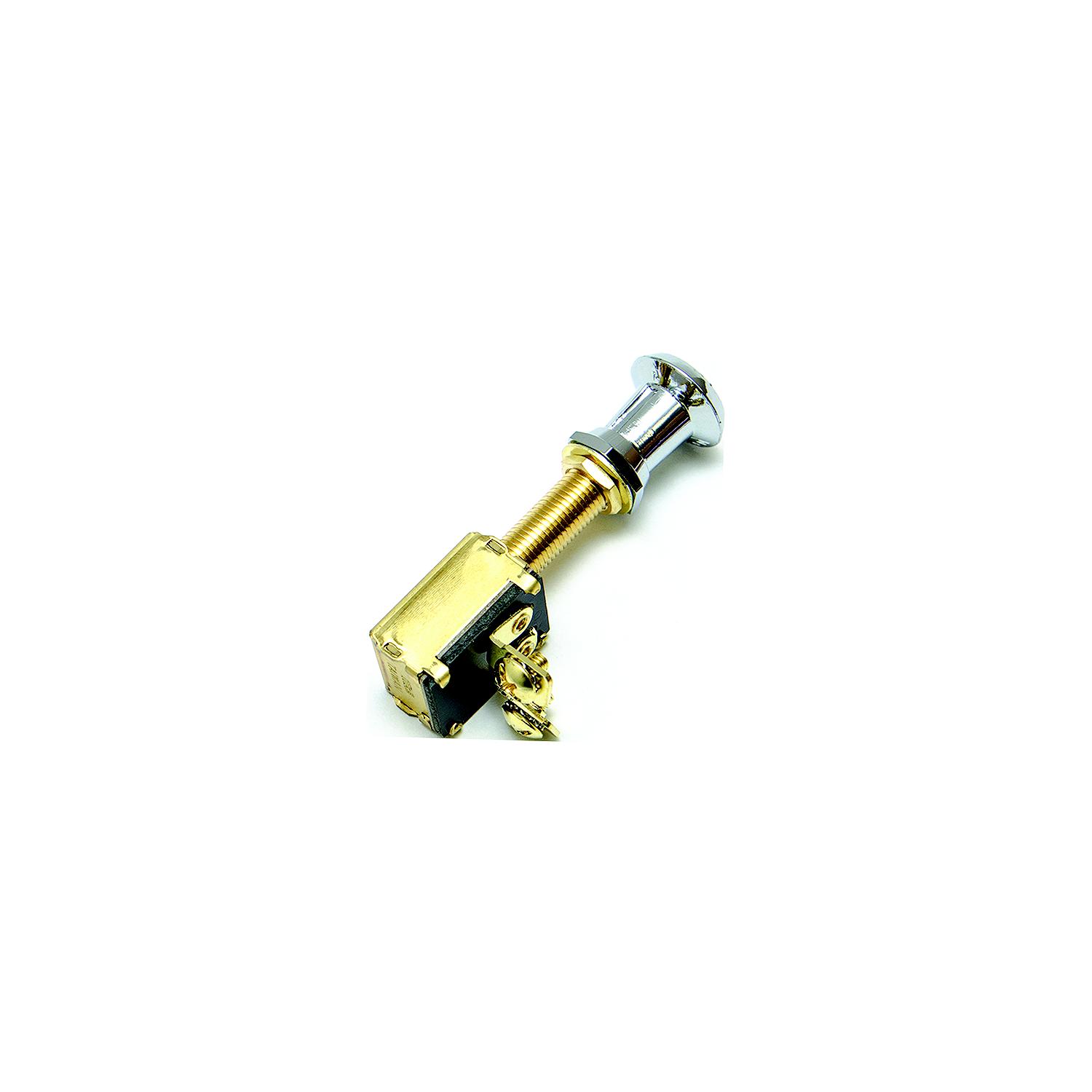

On/Off Switch
$24.79
On/Off Switch
Description
On/Off Switch Sierra push pull switches feature solid brass construction with stainless steel springs. 3/8″ Diameter mounting stem fits panels up to 1″ thick. 15 amp @12VDC, 25A @24VDC. MP39400: used to control the same circuit from two locations. MP39600: energizes two separate circuits in the ON position. MP39640: first pull energizes circuit 1, second pull energizes circuit 2. MP39570, MP39580, & MP39590: first pull energizes circuit 1, second pull energizes circuits 1&2. MP39610 & MP39620: first pull energizes circuit 1, second pull energizes circuits 2&3.
Description: Off/On
Knob Finish: Chr/Plastic
Additional information
| Weight | 0.15 lbs |
|---|---|
| Dimensions | 6.81 × 3.18 × 1.75 in |
| Description | |
| Knob Finish | |
| Terminals | |
| Type |
