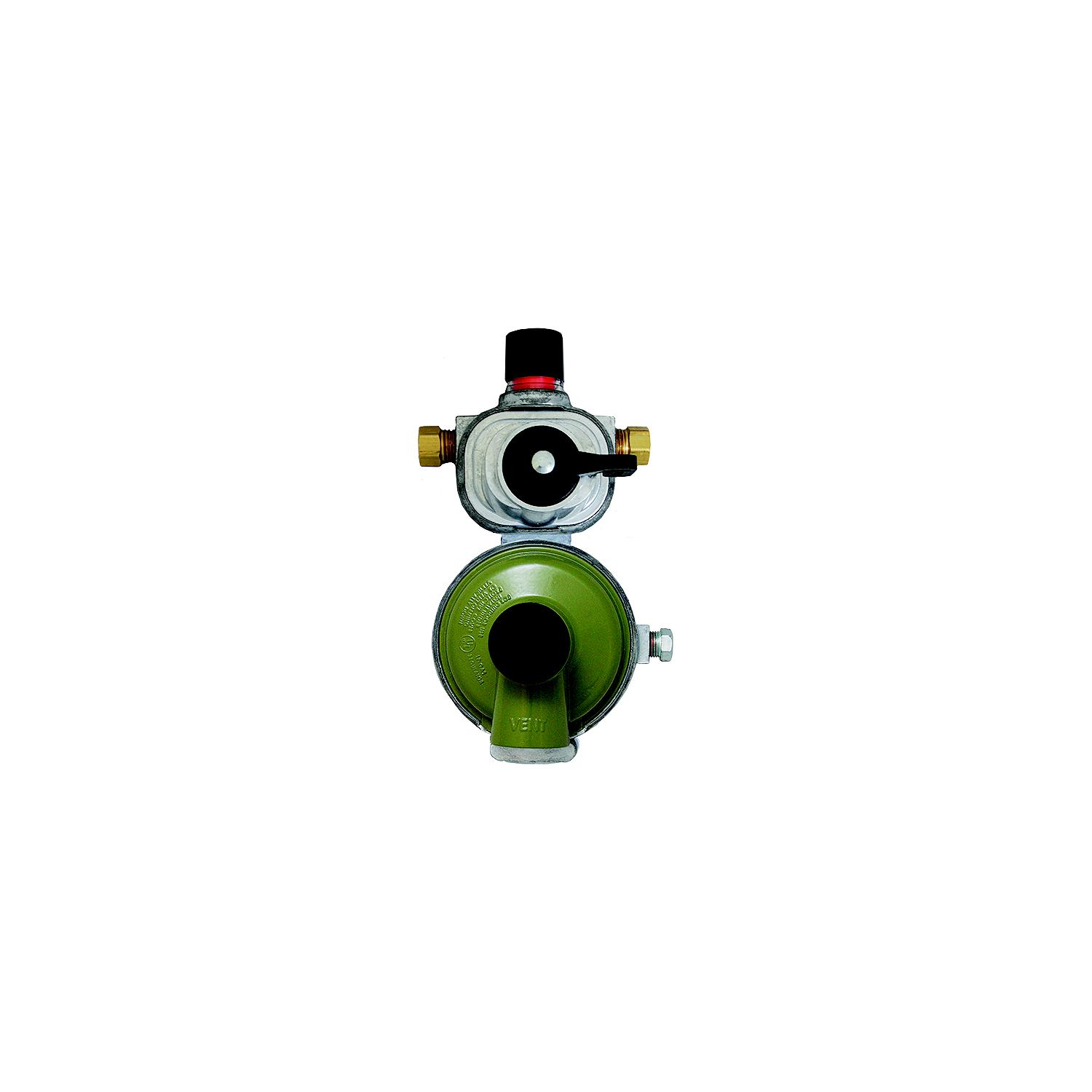

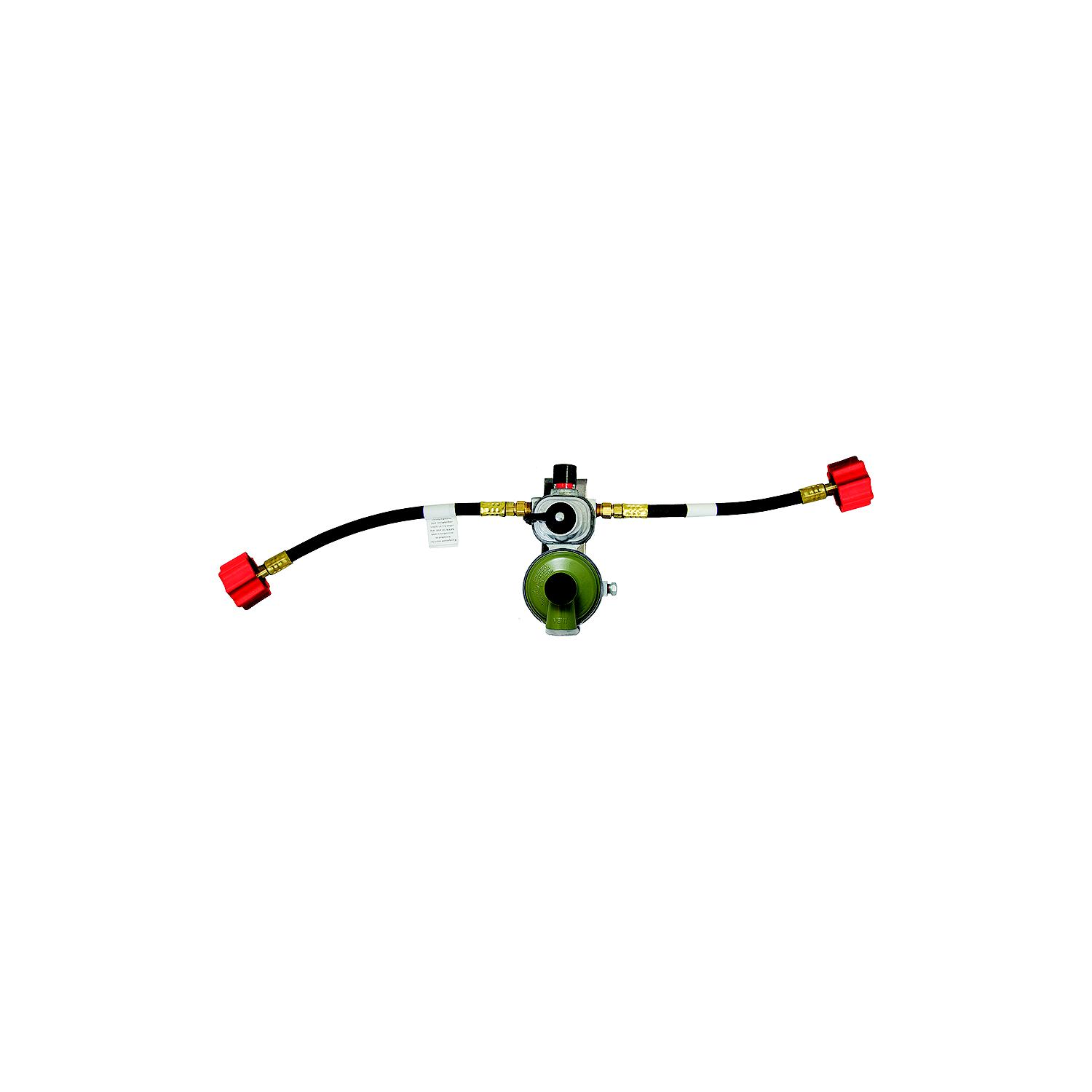

MEC MEGR253HPPT24 Excela-Flo Automatic Changeover Regulators, High Capacity w/24″ Hose, Packaged
$159.09
MEC MEGR253HPPT24 Excela-Flo Automatic Changeover Regulators, High Capacity w/24″ Hose, Packaged
Description
MEC MEGR253HPPT24 Excela-Flo Automatic Changeover Regulators, High Capacity w/24″ Hose, Packaged The Automatic Changeover Regulator automatically redirects LP gas vapor flow from an empty service cylinder to a reserve cylinder, without interruption of service. It features an easy to read green indicator which changes to red when the service cylinder needs to be refilled. Meets UL, RVIA and NFPA requirements.
Description: High Capacity w/24″ hose
Package: Clamshell
Type: Two Stage
Max Inlet Pressure: 250 PSI
Inlet Connection: 1/4″ Female Inverted Flare
Outlet Connection: 3/8″ FNPT
Exterior Finish: Raw Zinc / Powder Coat
Diaphragm: Fabric Reinforced Molded with O-Ring Bonnet / Body Seal
Diaphragm Type: Internal Relief – Spring Loaded
Bonnet/ Body Material: Die Cast Zinc
Listings: UL LISTED / UL 144
Mounting Holes: 3-1/2″ On Center
Pressure Taps: 1/8″ FNPT Plugged
Additional information
| Weight | 9.666 lbs |
|---|---|
| Dimensions | 11 × 10.5 × 3 in |
| Description | |
| Package |
