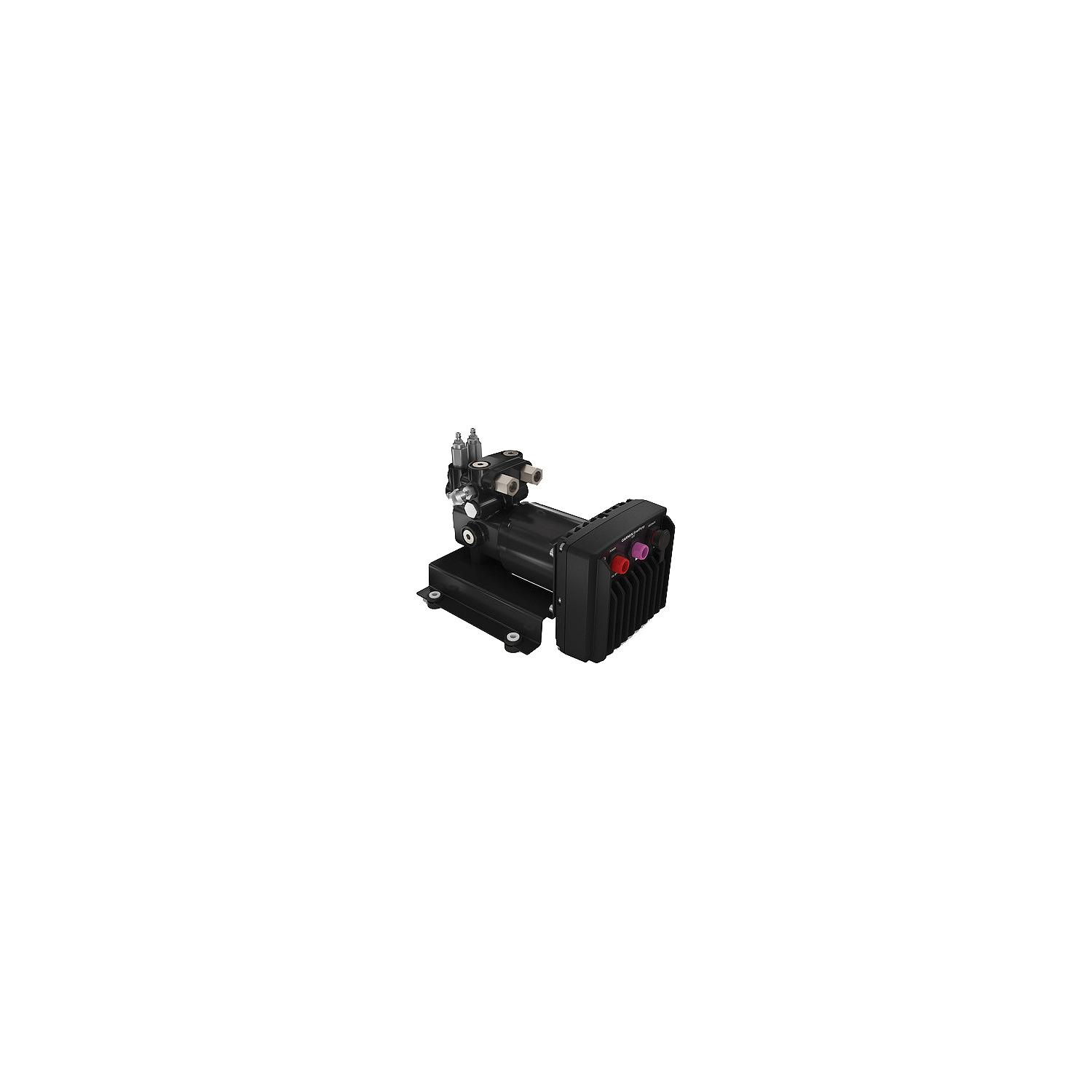

Garmin 0100070562 Smartpump V2 Autopilot Pump, 12/24V
$2,799.99
Garmin 0100070562 Smartpump V2 Autopilot Pump, 12/24V
Description
Garmin 0100070562 Smartpump V2 Autopilot Pump, 12/24V Put an end to guessing which pump size will work with your particular boat. One SmartPump V2 works for most hydraulically steered boats and applications. For optimum control and confidence, you know you have the right pump for your boat. Plus, you get complete control in a smaller size with better thermal performance, higher reliability and lower power consumption. It also includes color-coded connectors to make it very easy to install.
Size: 6.6H x 7.5W x 10.4D (168 x 191 x 265 mm)
:
Dimensions (H x W x D): 6.6 x 7.5 x 10.4 (167.6 x 190.5 x 264.16 mm)
Weight: 16.5 lbs (7.5 kg)
Temperature range: From 5F to 131F (from -15C to 55C)
Material: Electronics Control Unit (ECU) – fully gasketed, aluminum alloy; bracket – carbon steel; manifold – aluminum alloy; motor – aluminum alloy
Power cable length: 9 ft (2.7 m)
Power input: 10-30 Vdc
Fuse: 40 A, blade-type
Main power usage: standby – less than 1 A; engaged – 5-10 A; peak – 34 A
Flow rate: Configurable from 0 to 2.4 L per minute
Compatible with steering cylinder sizes from 4-24 cu in; 7 second lock to lock up to 17 cu in
Additional information
| Weight | 16.5 lbs |
|---|---|
| Dimensions | 9.6 × 7.8 × 7.5 in |
| Size |
