Dometic HK43004 Baystar Compact Hydraulic Steering System (No Hose)

Dometic HK43004 Baystar Compact Hydraulic Steering System (No Hose)

$1,099.89

Dometic HK43004 Baystar Compact Hydraulic Steering System (No Hose)

SKU: 1-HK43004 Categories: , Brand:

Description

Dometic HK43004 Baystar Compact Hydraulic Steering System (No Hose) Application: BayStar is for single-outboard powered boats rated up to 150 HP, including runabouts and inflatables and outboard engines with ABYC standard engine tilt tubes up to 150 HP (total). For single station, single engine use only. BayStar is not intended for high speed, high performance type boats.

Helm and cylinder equipped with adjustable O-ring fittings to simplify the installation process and allow for simple reorientation of the fittings after installation. Two year warranty.

Requires 5″ H x 6″ D x 21″ W minimum splashwell
5 Turns lock-to-lock
Balanced cylinder fits most splashwells
5″ footprint; needs only 3″ hole (Standard or Tilt)

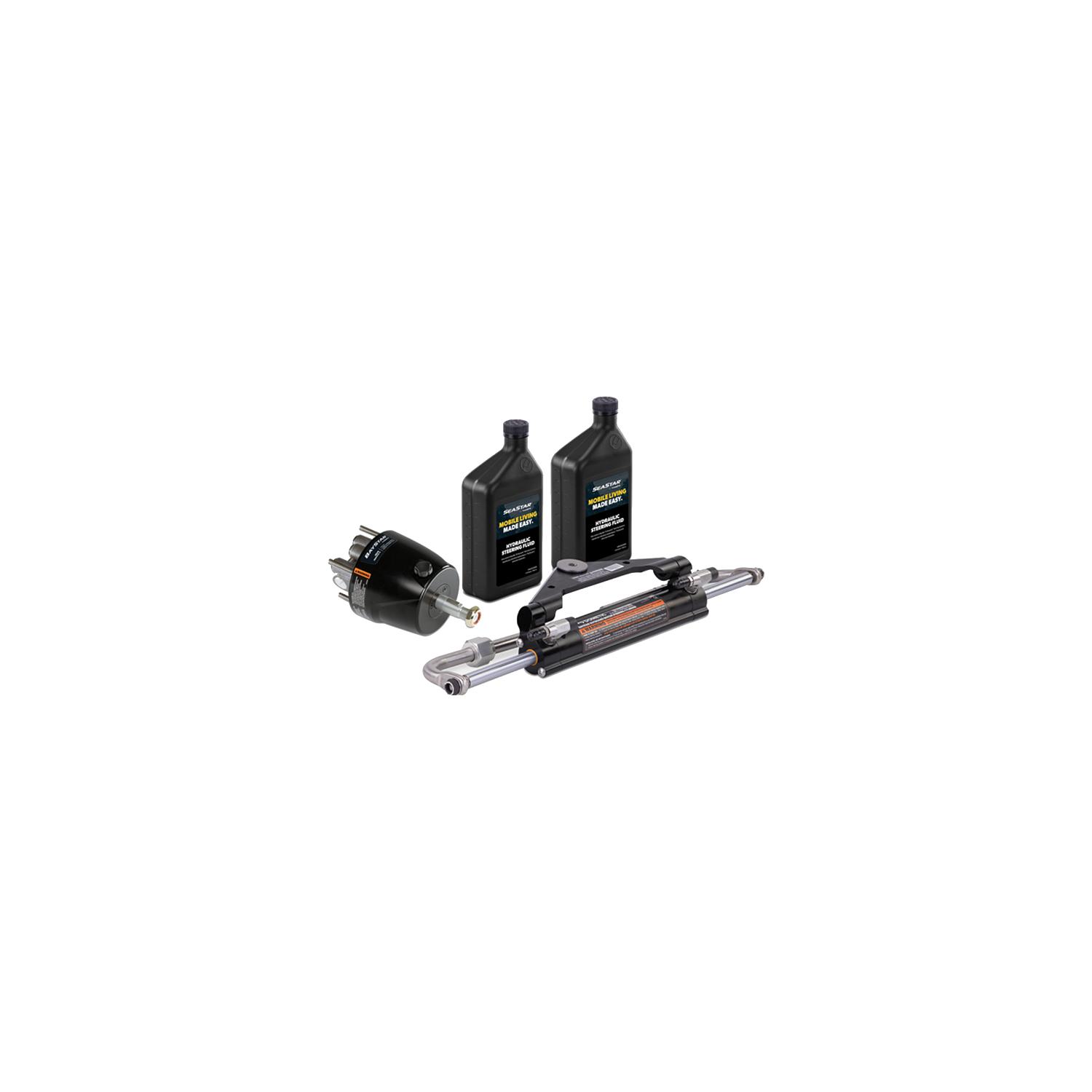

Complete with helm, cylinder, fittings, tubing, oil, fill kit & instructions
Standard 3/4″ tapered shaft
Meets A.B.Y.C. standards and meets NMMA certification requirements
^Kits Includes:
BayStar Helm 1.4 cu with adjustable O-ring fittings
HC4645H3 – BayStar Compact Cylinder
HA5430 (2) – Hydraulic Oil (1 liter)

Additional information

Weight 19.29 lbs
Dimensions 22.3 × 14.4 × 5.2 in
Includes
