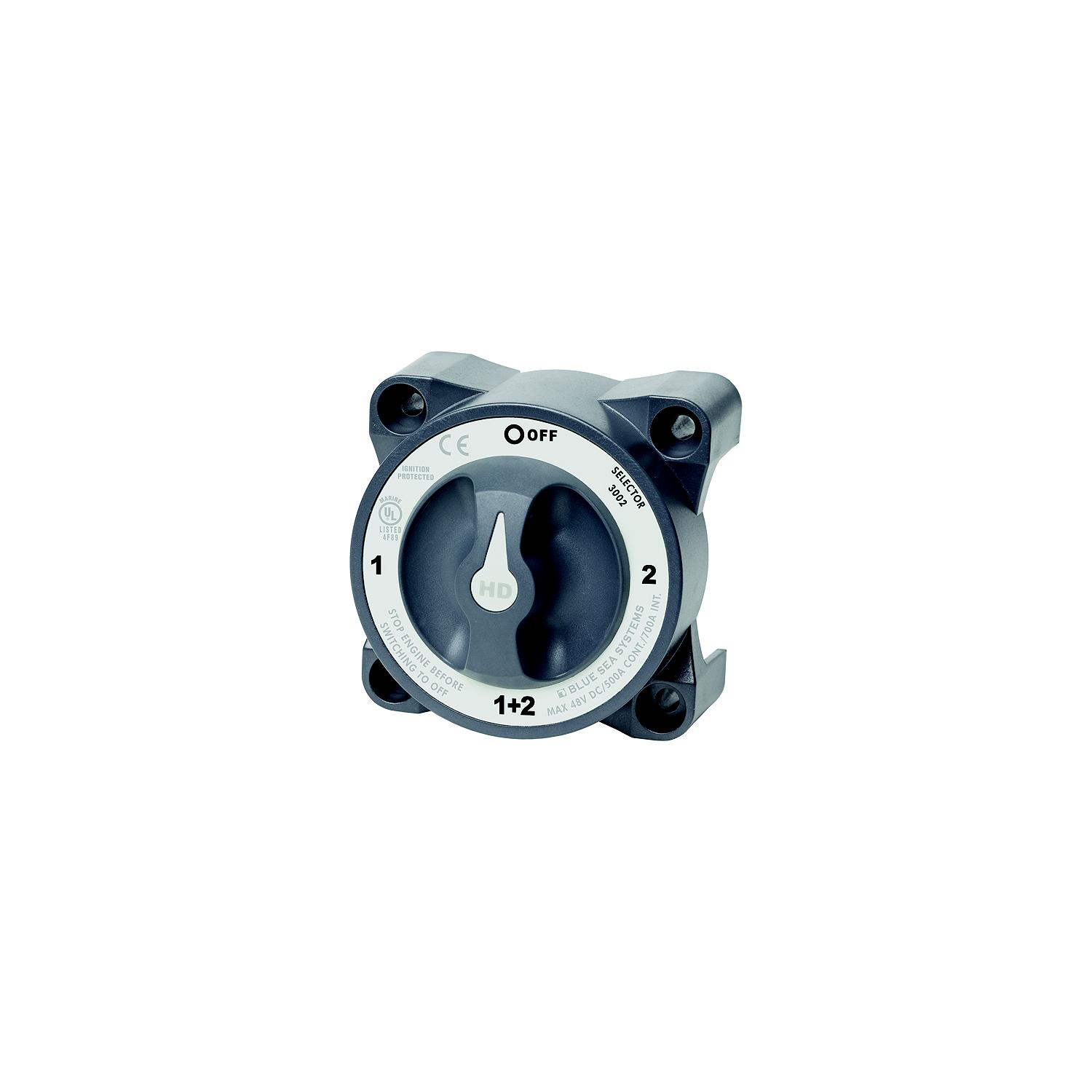

Blue Sea Systems 3002 HD-Series Heavy Duty 4 Position Selector Battery Switch
$146.99
Blue Sea Systems 3002 HD-Series Heavy Duty 4 Position Selector Battery Switch
Description
Blue Sea Systems 3002 HD-Series Heavy Duty 4 Position Selector Battery Switch Up to 500A continuous rating for large diesel engines. One-piece tin-plated copper stud design never loosens over time. Terminal studs accept 1/2″ or M12 ring terminals. Ignition protected and UL Listed. Selector features make-before-break contact design. AFD ( Alternator Field Disconnect models allow switching while running the engine without damaging the alternator.
Cranking Rating 30 sec.: 1600A DC
Cranking Rating 1 min.: 1150A
Intermittent Rating 5 min.: 700A
Continuous Rating: 500A
Additional information
| Weight | 1.3 lbs |
|---|---|
| Dimensions | 8.2 × 6.2 × 3.1 in |
| Type |
